High Power Relay T90-12VDC-TL-A 30A 12VDC For Charging Post
T90 high power relay, 30A heavy load, indium tin oxide contact, super shock resistance
Product number: T90-12VDC-TL-A 30A 1
Category:
Products
Power relay
T90 Relay
Contact Us
Product Description
High Power Relay T90-12VDC-TL-A 30A 12VDC For Charging Post
● 30 Contact switching capability Suitable for inverter of solar photovoltaic power generation
● Suitable for UPS Contact clearance: 1.8mm
● The whole machine applies coil holding voltage to save power consumption
● Environmental protection products (RoHS compliant)
● Dimension: (32.2 x 27.4 x 19.4) mm
Detailed parameters
Product model： T90-12VDC-TL-A
Coil voltage type ：DC
Rated voltage of coil ：5,6,9,12,24,48
contact form A set of normally open
Number of contacts ：Single contact
Lead out mode： Printed board
Packaging method ：Flux proof
Coil power consumption： Standard type
Coil characteristics ：Monostable state
Contact material ：AgSnO2
Insulation class ：Class F
Packing method： Blister box
Rated voltage (V) ：250
Coil lead out mode :Printed board
Dielectric withstand voltage :(between coil and contact) (VAC 1min) 2500
Action time (MS) ≤15
Release time (MS) ≤10
Creepage distance (mm) :4.5
Electrical distance (mm) :4.5
Insulation resistance (m) Ω）:1000000
Maximum rated switching current (resistive) (a) :30
Maximum switching voltage (VAC):277
Temperature range (minimum) (℃) :-40℃
Temperature range (maximum) (℃)：+85℃
Mechanical durability (Times) ：1000000
Electrical durability (Times) :30000
Product description ：Solar relay
application area ：Photovoltaic inverter, UPS power supply, charging pile, etc
Weight (g) ： 36
Volume (mm3) ：32×27.4×19.2

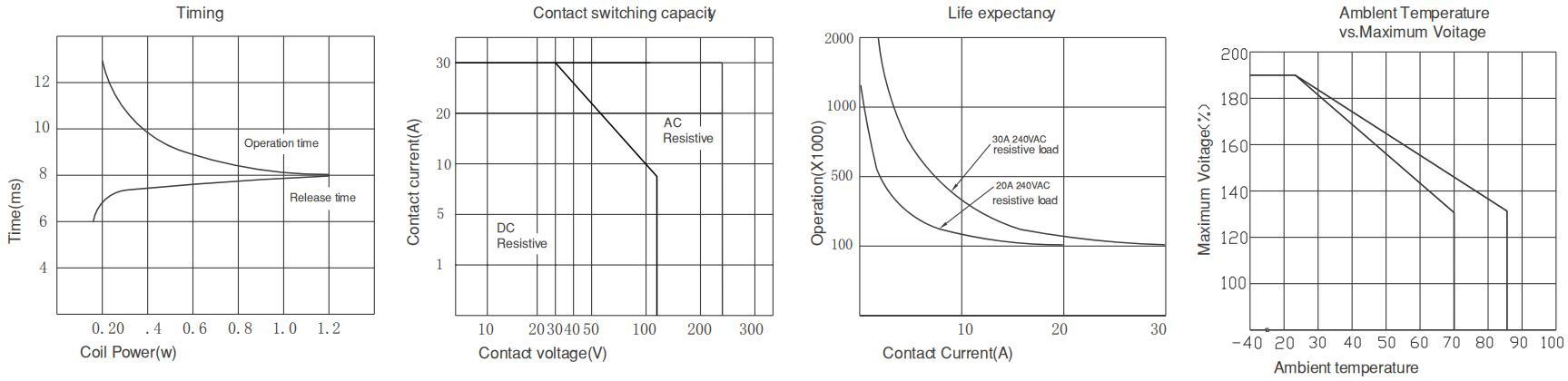

Design parameters

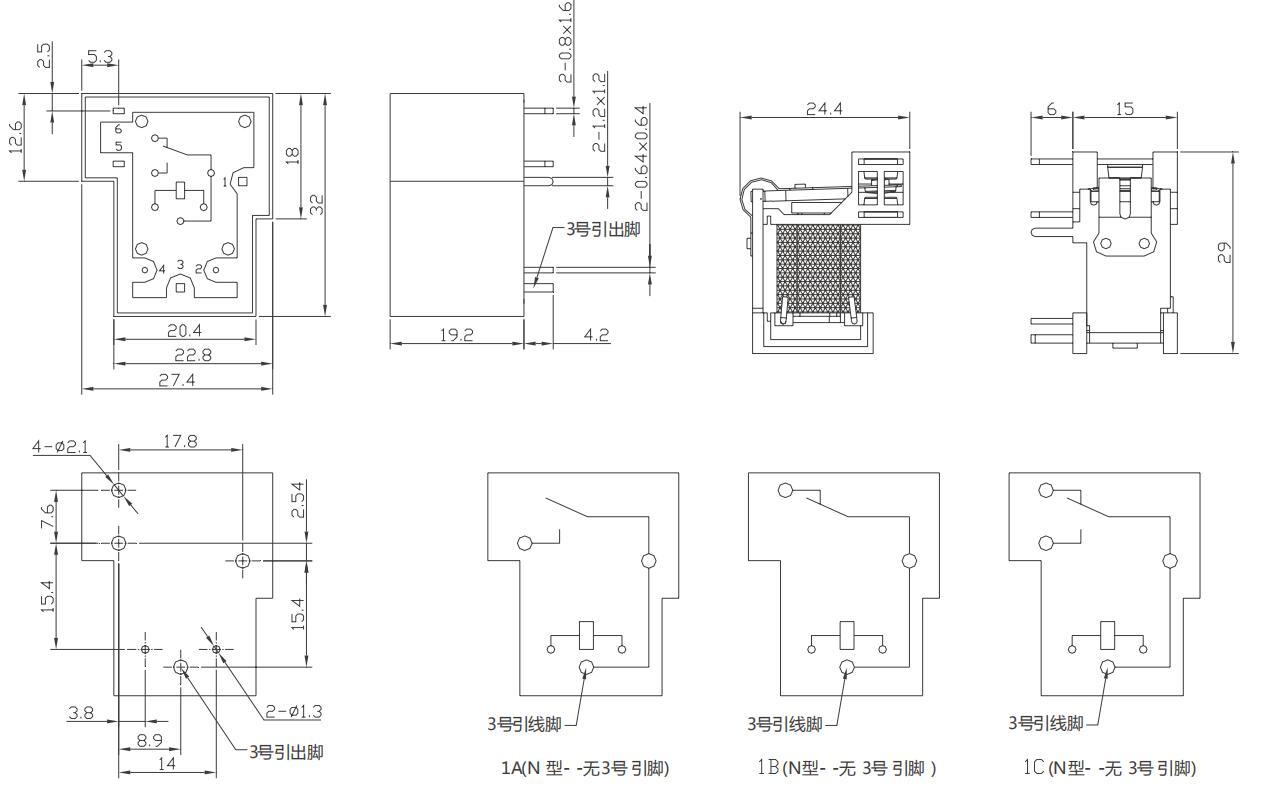

Installation diagram
