JQC-3FF-S-H 24VDC Relay Price

Manufacturer direct sale, quality is superior, price is favourable, Professional service, we are your professional choice, specializing in the production of 24vdc relay.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product number:
JQC-3FF-S-H 24VDC 4
Category:
24v relay
Quantity
-
+
Stock:
0
Product description
Parameters

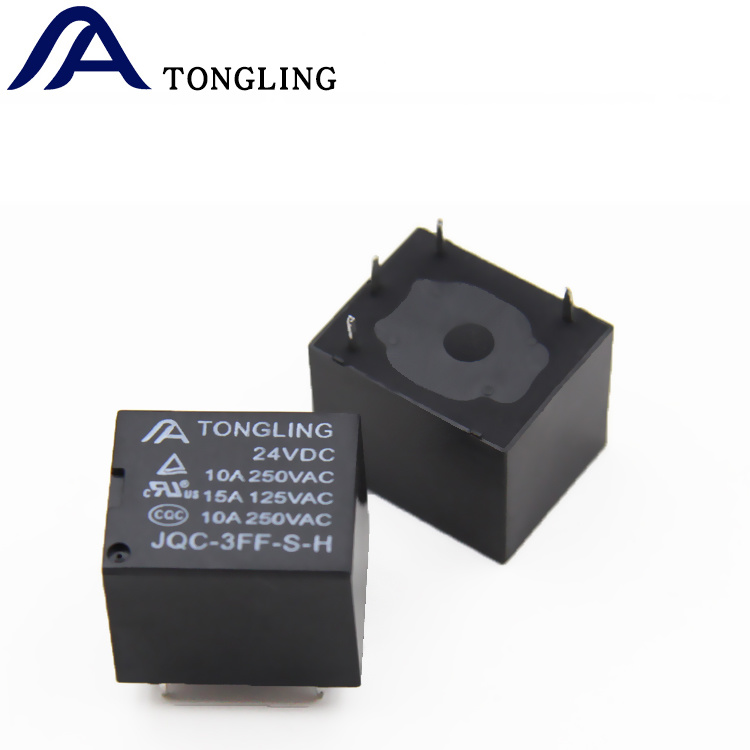

Tongling T73 JQC-3FF-S-H 24VDC Pcb Relay ,Electric Relay, 24V Relay,Relay Price

  • 10A switching capability
  • Small footprint
  • Sealed type available
  • Class B/F available
  • Conform to RoHS,ELV directive
  • Size 19.2mm*15.4mm*15.4mm

   ORDERING CODE

JQC-3FF-S-H

       1          2  3

1.Relay model   JQC-3FF

2.S:Sealed

3.Contact conversion form:H:Form A  Z:Form C    D:Form B



  COIL DATA (at 20℃ )



Nominal Voltage (VDC)

3

5

6

9

12

18

24

48





0.36W

Coil Resistance  (Ω±10%)

25

69

100

225

400

900

1600

6400

Rated Current  (mA)

120

71.4

60

40

30

20

15

7.5

Max Operate Voltage (VDC)

2.25

3.75

4.5

6.75

9

13.5

18

36

Min Release Voltage (VDC)

0.15

0.25

0.3

0.45

0.6

0.9

1.2

2.4

Max ApplicableVoltage

130% of rated voltage at 70℃, 170% of rated voltage at 23℃



     CONTACT DATA



Contact Form

1H/1Z

Contact Material

Silver Alloy

Load

Resistive load(COSФ=1)



Contact Ratings

10A 250vac 15A 125vac

Minimum load

100mA 5VDC

Max Switching Voltage

250VAC/30VDC

Max Switching Current

15A

Max Switching Power

2500VA/240W

Contact Resistance

100mΩMax at 6VDC 1A

Life Expectancy

Electrical  : 100,000 Operations(at30Operations/minute)

Mechanical  : 10,000,000 Operations(at300Operations/minute)



     CHARACTERISTICS DATA



Insulation Resistance

100MΩMin at 500VDC

Dielectric Strength Between Open Contacts

750VAC(50/60Hz for one minute)

Between Contacts and coil

1500VAC(50/60Hz for one minute)

Operate Time

10ms

Release Time

5ms

Temperature Range

-40℃ to+85℃

Shock Resistance

Operating Extremes  : 10G

Damage Limits : 100G

Vibration Resistance

10-55Hz, 1.5mm

Max. switching frequency

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity

40-85%

Weight

Approx 10g

Safety Standard

CQC TUV UL SGS





Deliver shipping



Our Services & Strength



        1. factory direct sales, primary source.

        2.Our own brand pays more attention to quality improvement and strict product inspection to ensure qualified delivery.

        3.After confirming the order, the products in stock will be delivered within 48 hours. For the products without stock, according to the size of the order and combined with the production arrangement of the workshop, we will reply to the delivery date and respond quickly.

        4.Regular products are available in large quantity.

Manufacturers direct selling, quality products, quality service, looking forward to your consultation.

If you want to know more information about 24V relay, please contact me.
