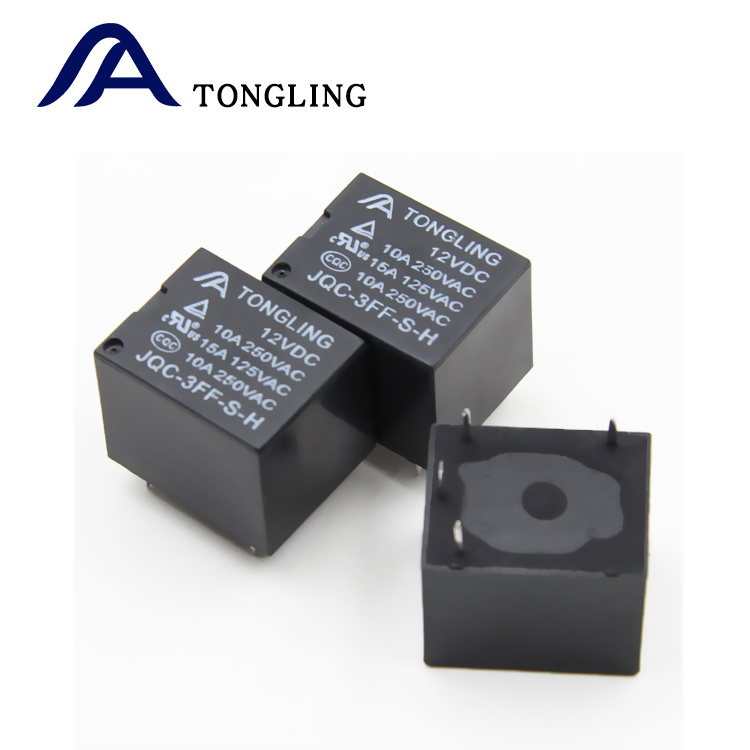

JQC-3FF-S-H T73 Relay 12V 4 Pin Normally Open

12V 4-pin normally open small electromagnetic relay with composite silver contact
Retail price
0.0
Market price
0.0
Number of views:
1000
Product number:
JQC-3FF-S-H 12V 12
Category:
Products
Quantity
-
+
Stock:
0
Product description
Parameters

Tongling(T73)JQC-3FF-S-H 12V 4 Pin Form A, Pcb Relay, Electric Relay ,Relay 12v,12V 10A Relay,10A 12V Relay,4 Pin Relay 12V,Relay 12v 4 pin

  • 10A switching capability
  • Small footprint
  • Sealed type available
  • Class B/F available
  • Conform to RoHS,ELV directive
  • Size 19.2mm*15.4mm*15.4mm

  ORDERING CODE



JQC-3FF-S-H

       1          2  3

1.Relay model   JQC-3FF

2.S:Sealed

3.Contact conversion form:H:Form A  Z:Form C    D:Form B



  COIL DATA (at 20℃ )



Nominal Voltage (VDC)

3

5

6

9

12

18

24

48





0.36W

Coil Resistance  (Ω±10%)

25

69

100

225

400

900

1600

6400

Rated Current  (mA)

120

71.4

60

40

30

20

15

7.5

Max Operate Voltage (VDC)

2.25

3.75

4.5

6.75

9

13.5

18

36

Min Release Voltage (VDC)

0.15

0.25

0.3

0.45

0.6

0.9

1.2

2.4

Max ApplicableVoltage

130% of rated voltage at 70℃, 170% of rated voltage at 23℃



   CONTACT DATA



Contact Form

1H/1Z

Contact Material

Silver Alloy

Load

Resistive load(COSФ=1)



Contact Ratings

10A 250vac 15A 125vac

Minimum load

100mA 5VDC

Max Switching Voltage

250VAC/30VDC

Max Switching Current

15A

Max Switching Power

2500VA/240W

Contact Resistance

100mΩMax at 6VDC 1A

Life Expectancy

Electrical  : 100,000 Operations(at30Operations/minute)

Mechanical  : 10,000,000 Operations(at300Operations/minute)



    CHARACTERISTICS DATA



Insulation Resistance

100MΩMin at 500VDC

Dielectric Strength Between Open Contacts

750VAC(50/60Hz for one minute)

Between Contacts and coil

1500VAC(50/60Hz for one minute)

Operate Time

10ms

Release Time

5ms

Temperature Range

-40℃ to+85℃

Shock Resistance

Operating Extremes  : 10G

Damage Limits : 100G

Vibration Resistance

10-55Hz, 1.5mm

Max. switching frequency

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity

40-85%

Weight

Approx 10g

Safety Standard

CQC TUV UL SGS
