JQC-3FF-S-Z 12VDC Relay products

T73 JQC-3FF-S-Z 12VDC Relay products,Electric Relay ,Composite Silver Contact,5 Pin,10A 250VAC Load,Tongling Relay Manufacturers Direct Sales.A lot of Spot on sales.
Retail price
0.0
Market price
0.0
Number of views:
1003
Product number:
JQC-3FF-S-Z 12VDC
Category:
12v relay
Quantity
-
+
Stock:
0
0
Product description
Parameters

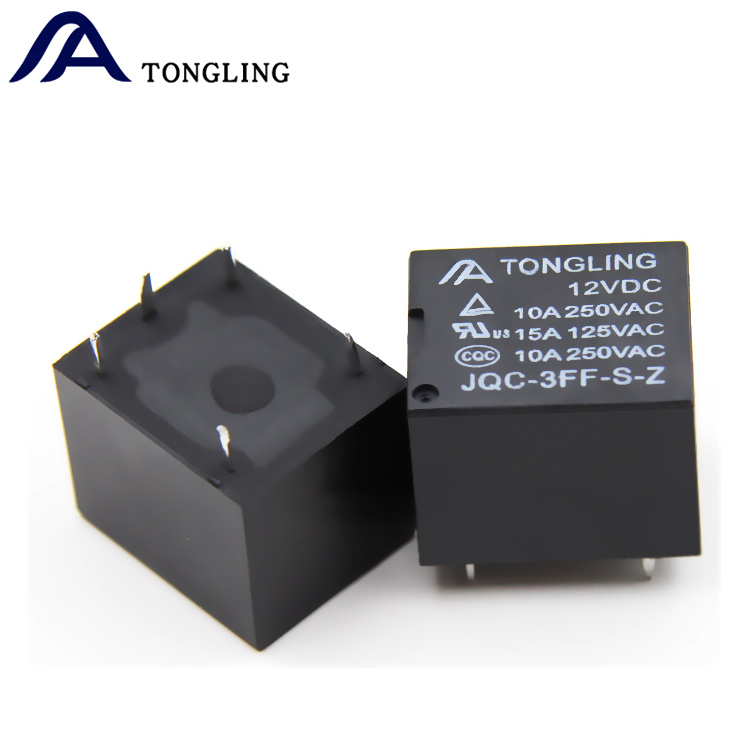

T73 JQC-3FF-S-Z 12VDC Relay,Electric Relay ,Composite Silver Contact,5 Pin,

Tongling Relay Manufacturers Direct Sales


  • 10A switching capability
  • Small footprint
  • Sealed type available
  • Class B/F available
  • Conform to RoHS,ELV directive
  • Size 19.2mm*15.4mm*15.4mm

   ORDERING CODE

JQC-3FF-S-H

       1          2  3

1.Relay model   JQC-3FF

2.S:Sealed

3.Contact conversion form:H:Form A  Z:Form C    D:Form B



  COIL DATA (at 20℃ )



Nominal Voltage (VDC)

3

5

6

9

12

18

24

48





0.36W

Coil Resistance  (Ω±10%)

25

69

100

225

400

900

1600

6400

Rated Current  (mA)

120

71.4

60

40

30

20

15

7.5

Max Operate Voltage (VDC)

2.25

3.75

4.5

6.75

9

13.5

18

36

Min Release Voltage (VDC)

0.15

0.25

0.3

0.45

0.6

0.9

1.2

2.4

Max ApplicableVoltage

130% of rated voltage at 70℃, 170% of rated voltage at 23℃



     CONTACT DATA



Contact Form

1H/1Z

Contact Material

Silver Alloy

Load

Resistive load(COSФ=1)



Contact Ratings

10A 250vac 15A 125vac

Minimum load

100mA 5VDC

Max Switching Voltage

250VAC/30VDC

Max Switching Current

15A

Max Switching Power

2500VA/240W

Contact Resistance

100mΩMax at 6VDC 1A

Life Expectancy

Electrical  : 100,000 Operations(at30Operations/minute)

Mechanical  : 10,000,000 Operations(at300Operations/minute)



     CHARACTERISTICS DATA



Insulation Resistance

100MΩMin at 500VDC

Dielectric Strength Between Open Contacts

750VAC(50/60Hz for one minute)

Between Contacts and coil

1500VAC(50/60Hz for one minute)

Operate Time

10ms

Release Time

5ms

Temperature Range

-40℃ to+85℃

Shock Resistance

Operating Extremes  : 10G

Damage Limits : 100G

Vibration Resistance

10-55Hz, 1.5mm

Max. switching frequency

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity

40-85%

Weight

Approx 10g

Safety Standard

CQC TUV UL SGS
