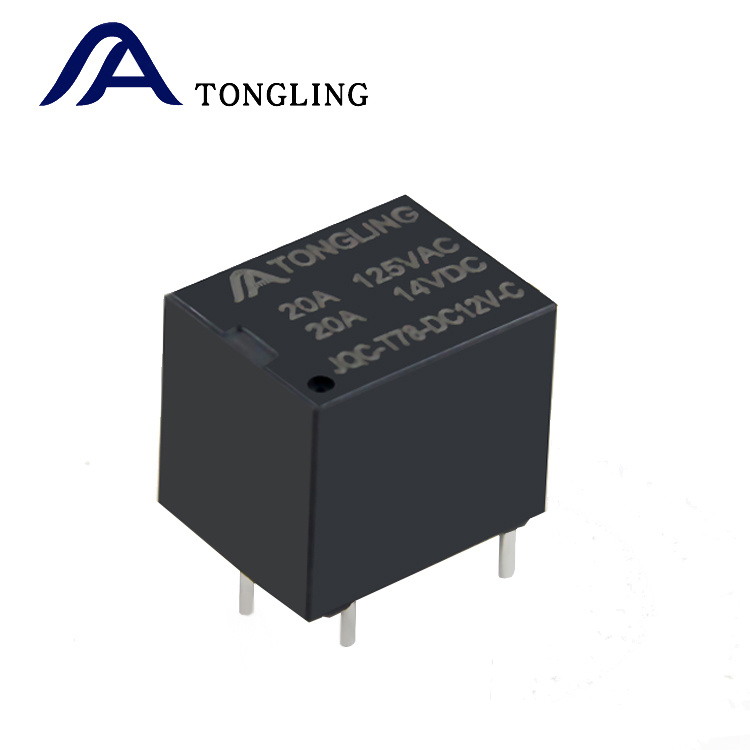

JQC-T78-DC12V-C 20A 125VAC Load Relay 5 Pin

5 pin conversion miniature electromagnetic relay
Retail price
0.0
Market price
0.0
Number of views:
1000
Product number:
JQC-T78-DC12V-C 12VDC
Category:
Products
Quantity
-
+
Stock:
0
Product description
Parameters

JQC-T78-DC12V-C 20A  Relay,20A 125VAC Load,Tongling Relay Manufacturers Direct Sales,Relay 5 Pin

 20A switching capability

 Small size auto relay

 Size  15 .7mm×12 . 3mm×14mm(Length * width * height)

   ORDERING CODE

JQC -T78 - DC24V- C

       1               2       3

1 . Relay Model :JQC-T78

2 .  Coil Nominal Voltage :5,  6 9,  12,  24 48VDC

3 . Contact conversion formZ: Form C H: Form A D:Form B



   COIL DATA(at 20℃)

   CONTACT DATA

  Contact Form

 1H/1Z/1B

  Contact Material

 Silver Alloy

  Load

 Resistive load(COSФ=1)



  Contact Ratings

 20A 125VAC

 20A 14VDC

  Minimum load

 100mA 5VDC

  Max Switching Voltage

 250VAC/14VDC

  Max Switching Current

 25A

  Max Switching Power

 2500VA/280W

  Contact Resistance

 100mΩMax           at 6VDC 1A

  Life Expectancy

 Electrical : 100,000 Operations(at30Operations/minute)

 Mechanical : 10,000,000 Operations(at300Operations/minute)

   CHARACTERISTICS DATA

 Insulation Resistance

 100MΩMin at 500VDC

 Dielectric Strength Between Open Contacts

 500VAC(for one minute)

 Between Contacts and coil

 500VAC(for one minute)

 Operate Time

 10ms

 Release Time

 5ms

 Temperature Range

 -40℃ to+85℃

 Shock Resistance

 Operating Extremes  : 10G

 Damage Limits  : 100G

 Vibration Resistance

 10-55Hz, 1 . 5mm

 Max . switching frequency

 Mechanical:18,000operations/hr

 Electrical:1,800operations/hr

 Humidity

 35-85%

 Weight

 Approx 6g

   ENGINEERING DATA

   OVERALL AND MOUNTING DIMENSIONS
