TL23F-12VD-S-Z Signal Relay

TL23F-12VD-S-Z Signal Relay,Signal Relay,3A 250VAC Load

Product number: TL23F-12VD-S-Z

Category:

Products

Communication relay

23F Relay

Product Description

TL23F-12VD-S-Z Signal Relay,Signal Relay,3A 250VAC Load

● Small size and low cost

● DIP standard terminals

● Sealed type available

● Size ：12 .4mm*7 .4mm*10mm(Length * width * height)

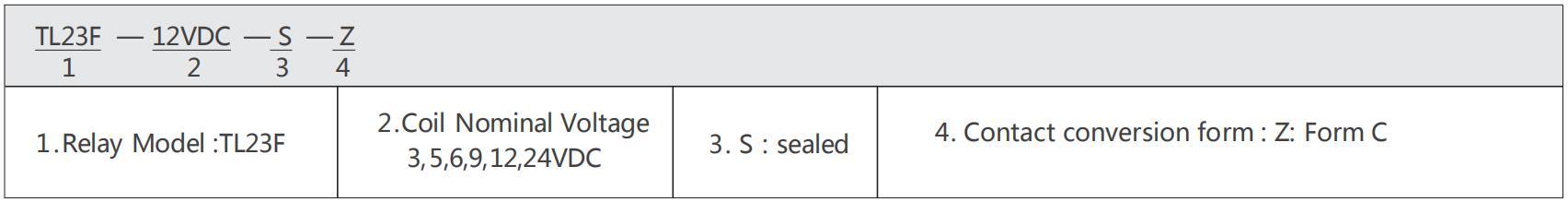

ORDERING CODE

COIL DATA

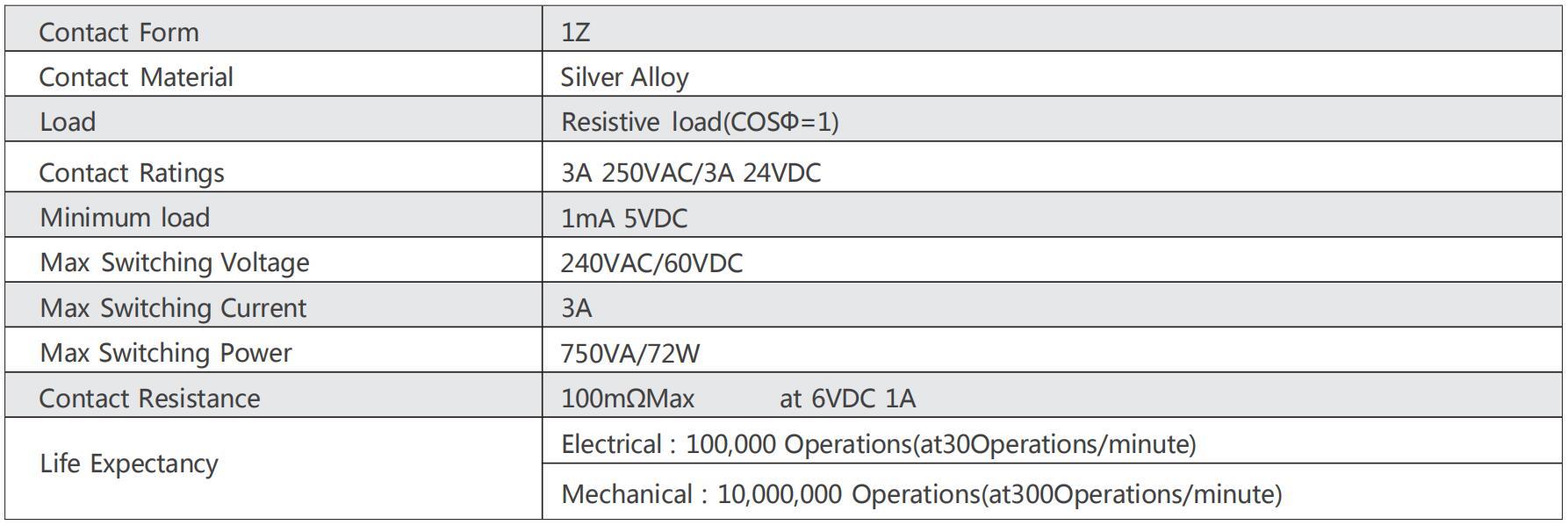

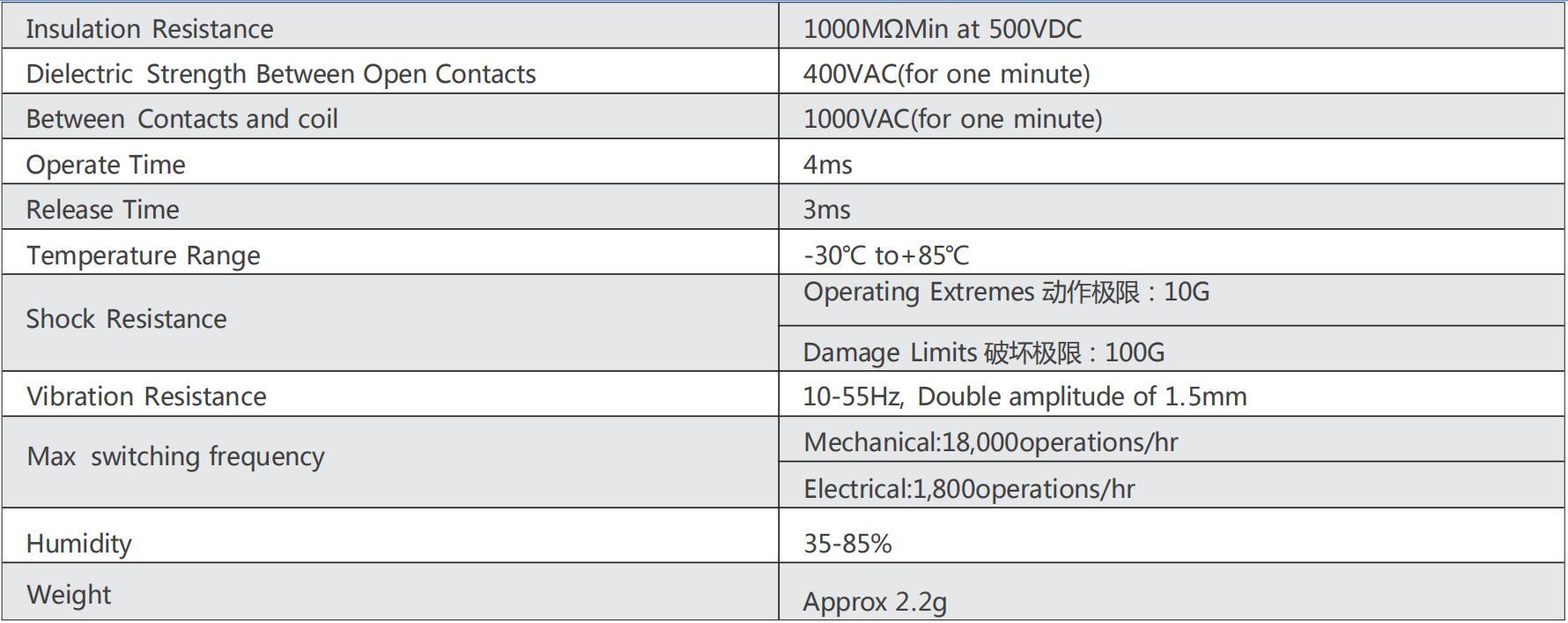

CHARACTERISTICS DATA

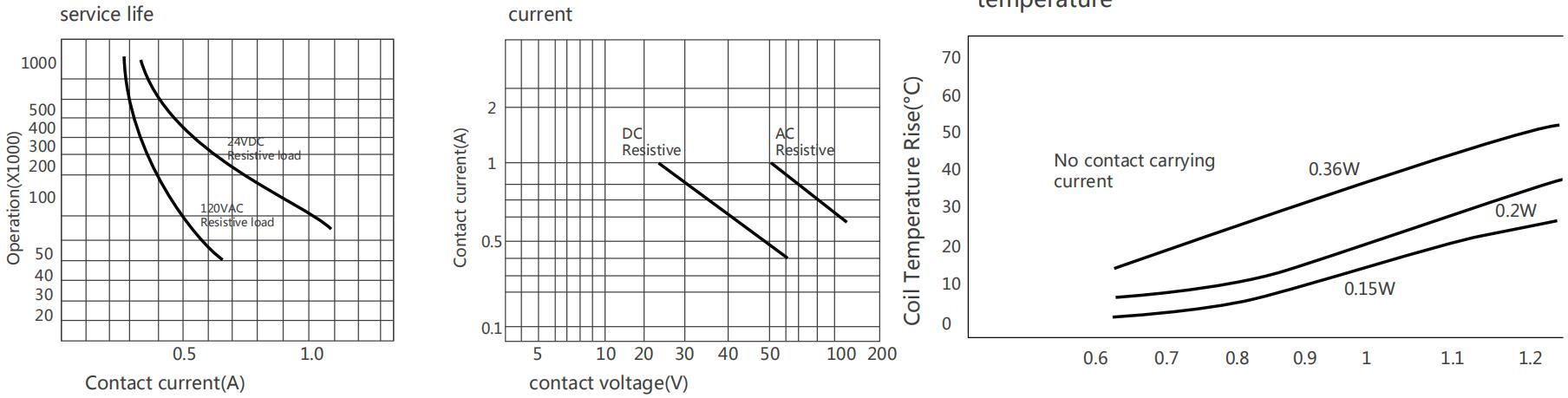

ENGINEERING DATA

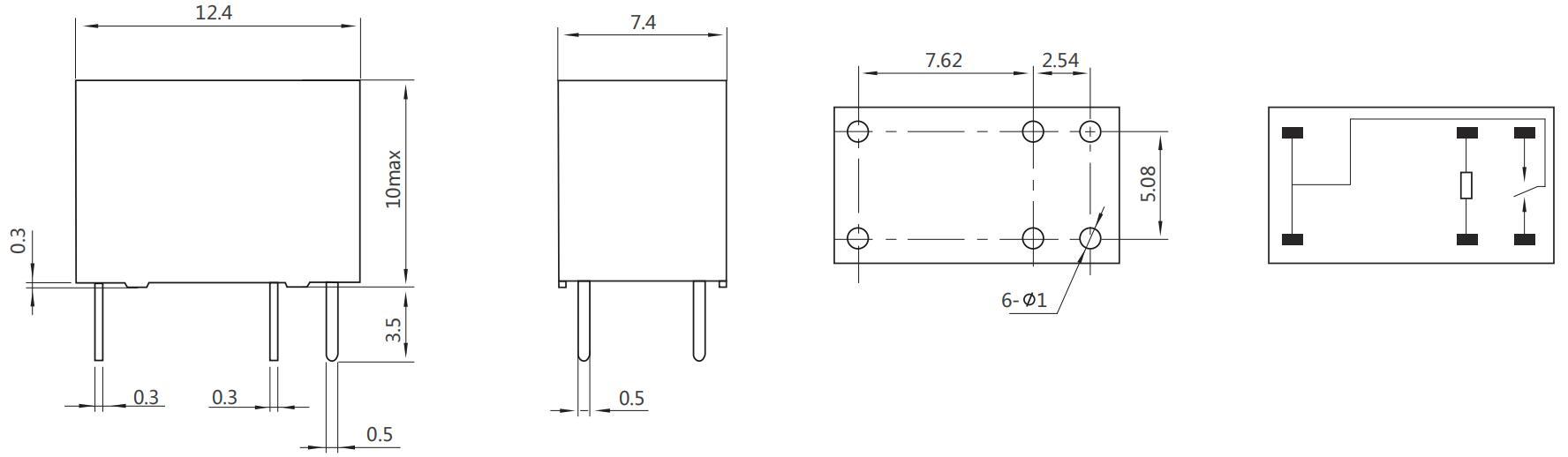

OVERALL AND MOUNTING DIMENSIONS

Remarks: 1) Dimension tolerance not indicated in the external dimensions of part of the product: when the external dimensions are ≤ 1mm, the tolerance is ± 0.2mm; When the external dimension is 1~5mm, the tolerance is ± 0.3mm; When the external dimension is > 5mm, the tolerance is ± 0.4mm.

2) In the dimensions of mounting holes, the tolerance of unmarked dimensions is ± 0.1mm.
